(MS Power Automate Desktop) Image functionality and utilization

MS Power Automate Desktop has several features.
Before you automate your tasks, learn many functions and then write a flow Efficient

(many factors including maintenance and deliverables).



---



There are many elements in the image function as well. So, I will explain it in the following order.
It's good to try it yourself.





1. Find the image and double click -> 2. Wait for the desired image -> 3. Action for a specific image



---





1. Find the image and double-click



First of all, if you search for 'image' in the search box, 'move mouse to image' exists.
Drag it and drop it to the next empty space next to it



If you see a screen like this, please set it the same as my screen capture

You can click 'Send a click after moving mouse' and 'Click type'.

After that, please press "Select Image" and then "Screenshot Image" that comes out later.



You'll also have a Chrome icon on your desktop.

Use the "image capture" function to range the icon only

If Chrome is executed when you press Save afterwards, it is successful.









2. Wait for the desired image



When you run a particular program, you may need to wait because there is a load time.
Image waiting waits for a specific image to come out in this situation (specific image -> program is fully loaded)



Drag 'Wait for Image' to an empty space and the following screen will appear.





Press 'Select Image' and wait for the desired image to appear

Capture a specific image. We will set it up on the Google screen.



Once you have captured and saved the Google image, you can now confirm that you are waiting for it to appear.











3.  Action for a specific image



I ran Chrome and hung an image waiting.
After that, if Google exists, I'll send you a message.





 use the captured Google image.



image_2 click

Save it after clicking on the Google image.

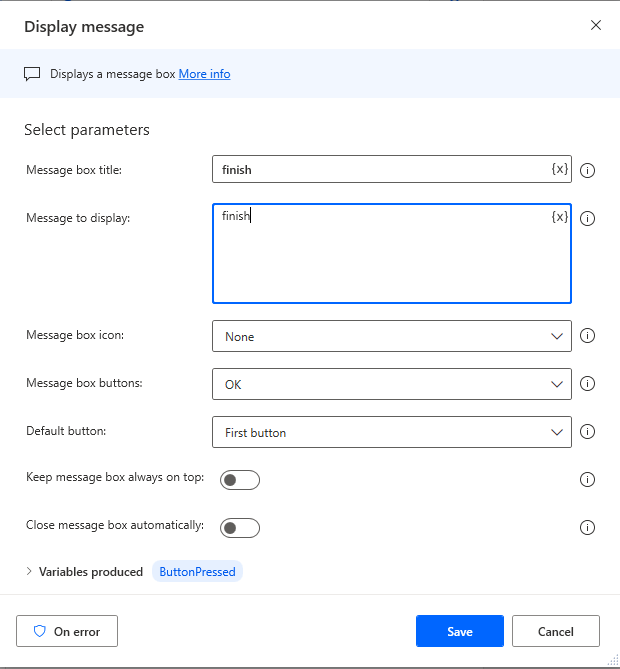

Search for 'Message' and insert 'Display Message' between 3 and 4.





Now, please write down the phrase you want and save it.
All flows have been created. I want you to do it.



---

Outcome



Did you get that message?



Image capabilities make it easy to automate tasks.

However, even if the size and resolution of the image are slightly different, it cannot be recognized.


If you want to use the image function, please review it in advance and use it.
